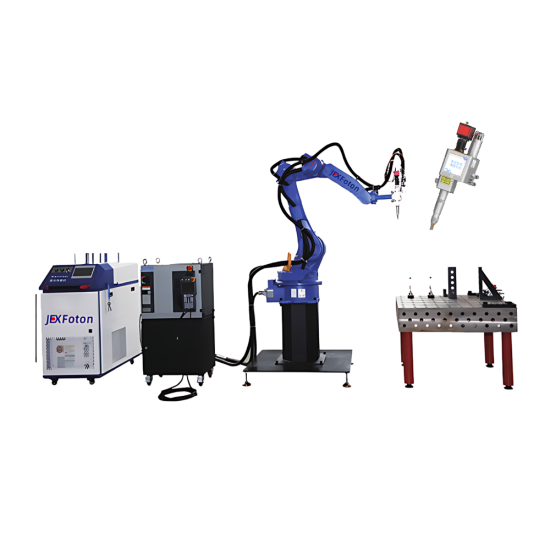

Robot Laser Welding Machine
inquiry
1 Piece (MOQ)
Product Details
Product Description
u Laser beams provide excellent focus, and with robotic motion control, high-precision welding is achieved;
u Robotic systems enable continuous, unattended operation, ideal for mass production;
u Stable and repeatable welds with minimal human error;
u Capable of welding complex 3D paths tailored to various product geometries;
Product Parameter
Model | TB1500 | TB2000 | TB3000 |
Machine Size | 1300*1000*1700 mm (Refer to the actual product) | ||
Worktable Travel(mm) | X:800, Y:300, Z:400 (Up to 6-axis customizable) | ||
Power | 1500W | 2000W | 3000W |
Power Demand | AC220V 50/60HZ | AC220V 50/60HZ | AC380V 50/60HZ |
Machine Power | ≤15.5KW | ≤17.5KW | ≤22.5KW |
Welding Depth | 0.1-5.0mm | ||
Wave Mode | |||
Cooling | Water | ||
Wavelength | 1080nm（±10nm） | ||
Ambient Temperature（℃） | -10～50℃ | ||
Ambient Humidity（%） | ＜70 | ||
Welding Gas | Argon, Nitrogen | ||
