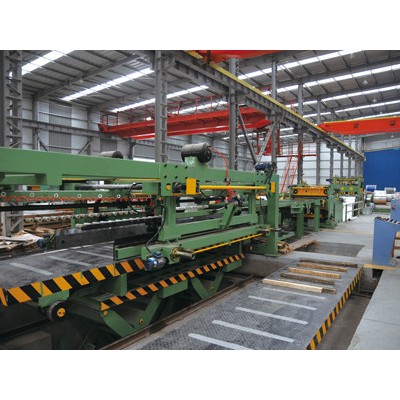

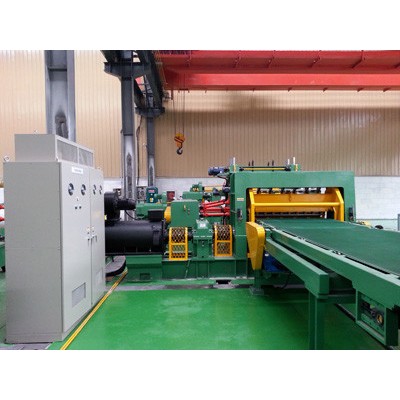

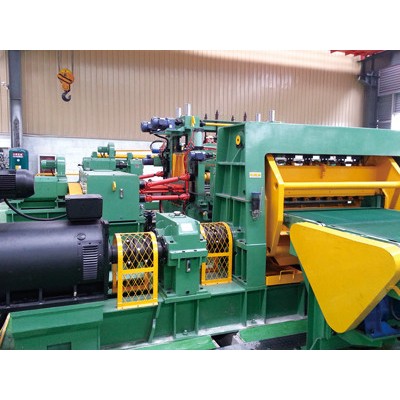

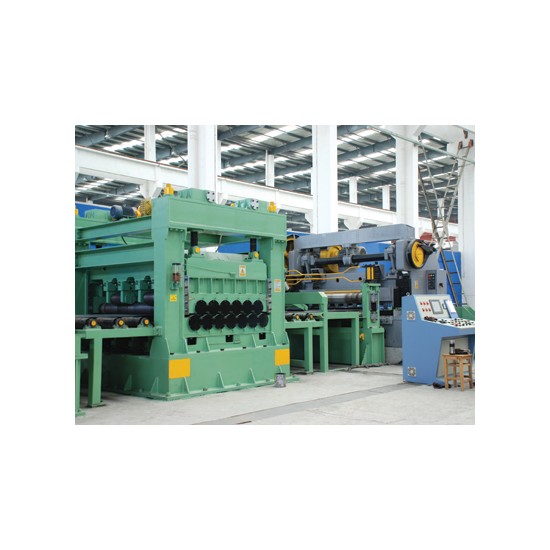

High-Speed Cut-To-Length Line

Introduction:

This high-speed cut-to-length line is able to uncoil & level a coil strip, and then shear the leveled flat strip to certain length of sheets at line speed of max 100m/min. It is referred as coil strip CTL machine in general place. This CTL machine is suitable for thin sheet or thin coil cut-to-length.
The high speed cut-to-length line adopts servo length-fixing and pneumatically mechanical shearing to make sure sheet length precision and clean shearing notch.
The high speed CTL line (coil strip CTL machine) fit steel coils with thickness: (0.2-2mm, 0.3-3mm, 0.6-4mm, or 1-5mm) and changeable width and length of finished sheets depend on customer's practical need.

Advantages and Characteristics of Coil Strip CTL Machine:

1. Fast speed and high precision
Line speed can be up to 100m/min, 25-30pcs/min 2000mm Length sheets in average.
Leveling precision: ±1mm/㎡
Sheet length precision: ±0.5mm/m
Sheet diagonal length precision: ±0.5mm/m
