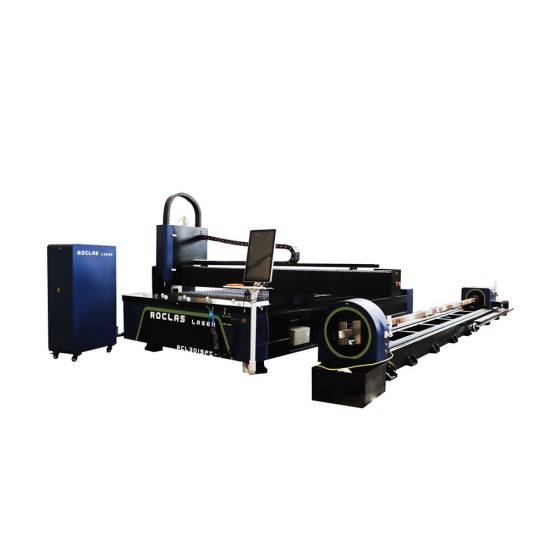

Plate and tube integrated laser cutting machine

Plate And Tube Integrated Laser Cutting Machine

The bed is annealed at high temperature to eliminate internal stress, and has good mechanical properties such as tensile strength, toughness, hardness and deformation resistance.

Equipped with a professional CNC system, it has powerful functions, is humanized and easy to understand, and can achieve high cutting efficiency.

The cutting area is 1500 × 3000mm, which can cope with the cutting of plates and pipes of larger sizes.

The cutting speed is fast, up to 0 - 40000mm/min, and the processing efficiency is high.

The laser power can be selected from 3000 - 12000W to meet different cutting intensity requirements.

The maximum cutting thickness can reach 30mm, suitable for cutting materials of various thicknesses.

Well - known brand laser sources (MAX, IPG, RAYCUS) are used, and the laser performance is stable.

The driving motor is an Inovance servo motor, which operates reliably and accurately.

The guide rail adopts THK brand, with high precision and good wear resistance.

The maximum empty travel speed reaches 80m/min, the non - cutting stroke time is short, and the overall processing efficiency is high.
