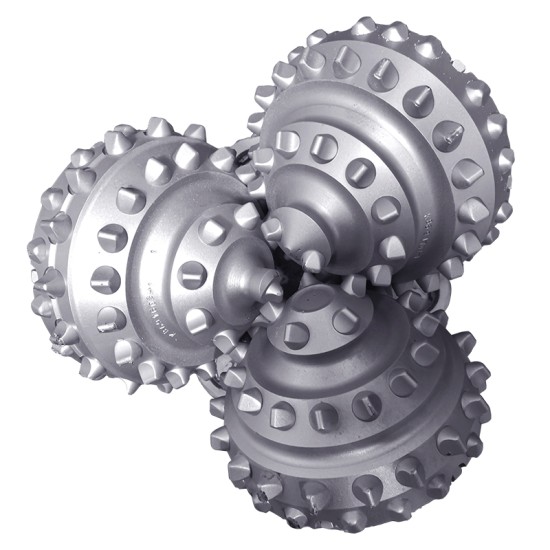

Water Well Bits 11 5/8" DHA537GKT

11 5/8" DHA537GKT DHA537GKT Z01 is part of water well bit,we are committed to providing our customers with the most professional, diversified and cost-effective customized products

11 5/8" DHA537GKT

Product profile

1. Wide top carbide insert with high strength and wear resistance are adopted to improve the wear resistance and cutting efficiency.
2. New journal bearing structure greatly prolongs the working life of the bearing, and has the ability to withstand medium bit pressure and adapt to high speed.
3. Updated O-shaped rubber sealing ring is more suitable for the working environment and operation parameters of roller cone bit.
4. New sealing structure makes the sealing performance match with the bearing, thus greatly prolongs the service life of the drill bit.

Cutting layout

5-4-4

Applicable formation

Designed for water well and HDD drilling, low compressive strength, medium soft, hard abrasive interbedded formation, such as hard shale, anhydrite, soft limestone, sandstone, interbedded dolomite, etc.

Lug protection

The shirttail of lug is protected by cemented carbide insert, the lug back is protected by welded wear-resisting carbide and ogive inserts.

Product Specification

IADC code:              537

Bit type:                11 5/8” DHA537GKT

Bearing type:            Journal bearing/Rubber sealing ring

Circulation type:         Mud

Cutting structure:

Inner rows:              Spoon

Outer rows:              Off-wedge

Bevel row:               Flat

Protection row:           Wedge

Pin connection:           6 5/8” REG

Bit diameter:             295 mm

Bit weight:               88 kg

Operating suggestion

During normal drilling, weight on bit and rotation speed cannot be used at the same time:

Weight on bit:  0.5~1.05 kN/mm

Rotation speed:  40~110 r/min
