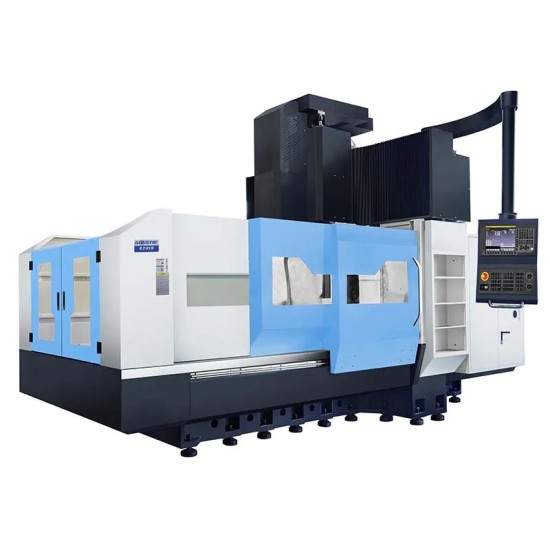

GS/G Series Gantry Machining Center GS1612 / GS2012 / G2015 / G2518

● GS/G series gantry machining center bed, workbench, column beam, saddle, ram and other key components are all made of high-strength Meehanite cast iron and resin sand molding, which has good shock absorption and thermal stability.
● The structural strength and rigidity of the whole machine are high.
● The X/Y axes are fixed by heavy-duty roller linear guide rails, with small friction coefficient and high positioning accuracy.
● The Z-axis adopts heavy-duty roller linear guide rail or rectangular hard rail structure, and each motion pair runs smoothly, accurately, wear-resistant and has a long service life.
● X, Y, and Z axes all use high-precision pretensioned ball screws.
● It is directly connected by a high-power AC servo motor, and there is no backlash transmission.
● The up and down motion of the Z-axis adopts double nitrogen balance cylinders to balance the unbalanced force of its movement, so as to reduce the no-load torque of the ball screw, reduce the wear of the ball screw, and maintain the accuracy and stability of the ball screw.
