Product Description

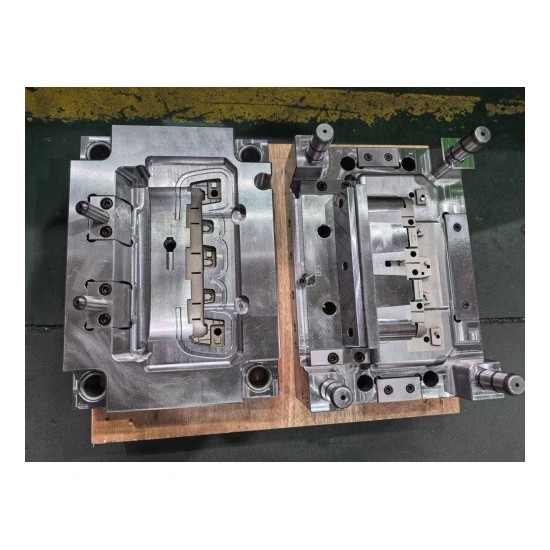

Precision AB Plate Machining: Foundation of Zero-Defect Injection Molding

Achieve perfect Mold alignment with SG's CNC-machined AB clamping plates. Engineered to JIS B 6336 standards, our plates deliver <0.003mm/m² flatness for critical applications in automotive, medical, and optical molding.

Core Technical Capabilities
Nanometer-Level Accuracy

Surface Flatness: ≤0.002mm/m² (ISO 8512-1)
Parallelism: ≤0.003mm/300mm
Surface Finish: Ra 0.1μm (Mirror Grinding Option)

Large-Format Machining

Plate Size	Max Capacity	Tolerance
Standard	1000×1000mm	±0.01mm
Large Frame	2000×1500mm	±0.02mm
Custom	3000×2000mm	±0.03mm

Advanced Process Chain

Stress relieving (550°C/12hr)
Rough milling (±0.1mm)
Thermal aging (24hr)
Precision grinding (±0.005mm)
Coordinate measuring (100% QC)

Material Excellence

Steel Grades: S50C, P20, 2738 HH
Hardness Options: 28-32 HRC (through-hardened)
Special Treatments:
- Nitriding (0.3mm depth)
- Cryogenic processing

Certified Performance Data
Automotive:

0.001mm flatness variance @ 800-ton clamping force
Optical Lenses:
λ/4 surface accuracy for light guide plates
Medical Devices:
FDA-compliant surface integrity (Ra<0.2μm)

Value-Added Services
Free Plate Distortion Analysis
72-Hour Rush Service (for standard sizes)
On-Site Laser Alignment Verification
