*Laser machine cooling solution

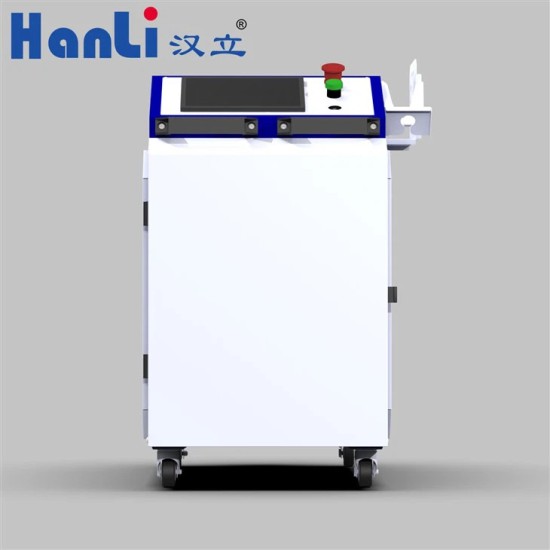

*All-in-one handheld laser welding machine SCHYTJ-1500 is user-friendly in that users no longer need to design a rack to fit in the laser and the rack mount chiller. With built-in hanli chiller, after installing a fiber laser for welding, it constitutes a portable and mobile handheld laser welding machine. The outstanding features of this machine include lightweight, movable, space-saving, easy to carry to processing sites of various application scenarios. It is applicable to various welding scenarios. Note that the fiber laser is not included in the package.
.
One of the key features of the SCHYTJ-1500 is its efficient cooling system, which eliminates the need for a separate rack-mounted chiller. This not only saves space, but also makes the machine much more user-friendly. Additionally, the machine's compact size and portability make it ideal for use in a variety of settings.
While the SCHYTJ-1500 comes with a built-in Hanli chiller, users will need to purchase a fiber laser separately in order to use the welding function. However, once a fiber laser is installed, the machine is capable of performing high-quality welds in a variety of scenarios.
Model
|
SCHYTJ-1500
|
SCHYTJ-2000
|
|
Voltage & Frequency
|
AC 1P 220 V
|
|
Working power
|
50 Hz
|
50 Hz
|
60 Hz
|
|
Working current
|
6.5 A
|
10.8 A
|
10.0 A
|
|
Machine power
|
2.1 kW
|
2.4 kW
|
2.2 kW
|
|
Application environment
|
0℃＜Ambient temperature＜45℃,relative humidity＜95%
|
|
Tempe.control accuracy
|
±1 ℃
|
|
Coolant
|
R32
|
|
Cooling capacity
|
4.5 kW
|
5.6 kW
|
|
Electric heating power
|
400W(Normal temperature)
|
400W(Normal temperature)
|
|
Rated flow of water pump
|
1.2 m³/h
|
1.2 m³/h
|
|
Max.pump lift
|
30 m
|
40 m
|
|
Pump power
|
0.25 kW
|
0.32 kW
|
|
Tank volume
|
13 L
|
|
Laser nozzle interface
|
Φ12 Pneumatic PU pipe
|
|
QBH head nozzle interface
|
Φ6mm Pneumatic Quick connector
|
|
Dimension
|
985×420×705(mm)
|
|
N.W
|
49 kg
|
|
Packing size
|
1030×470×855(mm)
|
|
G.W
|
58 kg
|
|
Matching laser source
|
1500W Continuous fiber laser
(Matching BWT,Max,Raycus ,RECI laser)
|
2000W Continuous fiber laser
(Matching BWT,Max,Raycus ,RECI laser) |
