PO Coil

Introduction to Pickled Plate Products

product overview

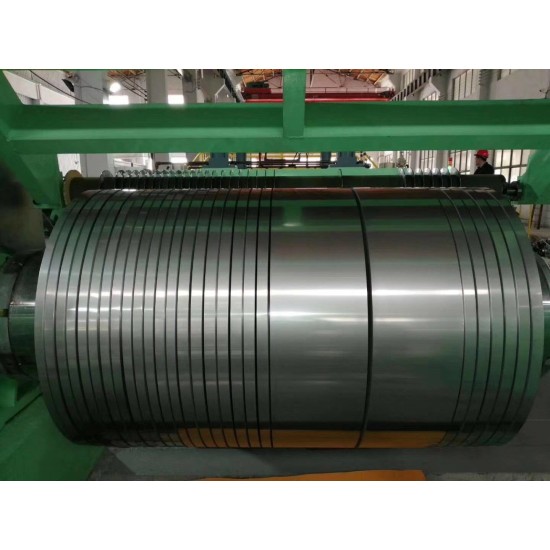

Pickled coil is a precision steel made from hot-rolled steel coils as the base material, after removing surface oxide skin through pickling process, with a thickness range of 0.8-6.0mm and a width of 600-2000mm. The product has high surface cleanliness (Sa2.5 level) and dimensional accuracy (± 0.05mm), and is an upgraded material to replace traditional hot-rolled coil. It is widely used in fields such as automobiles, home appliances, and machinery manufacturing.

Core advantages
✅  Surface zero defects
-Acid pickling with hydrochloric acid to remove iron oxide scale, surface roughness Ra ≤ 1.2 μ m
-No scratches or dents, can be directly sprayed or electroplated

✅  High precision dimensions
-Thickness tolerance ± 0.03mm (better than 50% for hot-rolled coils)
-Flatness of plate shape ≤ 3mm/m, reducing subsequent straightening processes

✅  Performance upgrade
-Retain the strength of hot-rolled plates (tensile strength 400-600MPa)
-Improve cold working performance (elongation ≥ 22%)

✅  environmental protection process
-Acid circulation regeneration system, wastewater discharge meets GB 8978 standard
-Chromium free passivation treatment, compliant with RoHS/REACH directive


Main grades and standards
|Material | Execution Standard | Typical Application|
|----------------|---------------------|--------------------------|
|SPHC (Low Carbon Steel) | JIS G3131 | Automotive Structural Parts/Hardware Stamping|
|Q235B | GB/T 710 | Building formwork/mechanical shells|
|SAE1006 | ASTM A568 | Home Appliance Panel/Precision Tube|
|DD11 (deep drawn steel) | EN 10130 | Automotive fuel tank/complex stamping parts|


Technical Parameter
-Thickness: 0.8-6.0mm (customizable ultra-thin 0.6mm)
-Width: 600-2000mm (minimum 50mm for longitudinal cutting strips)
-Surface condition: Silver white matte/coated with oil for rust prevention (optional)
-Mechanical properties: Yield strength ≥ 235MPa, hardness HRB 65-80


Typical applications
► Automotive industry: chassis parts, wheel hub covers
Home appliance manufacturing: refrigerator side panels, air conditioning enclosures
Mechanical processing: hydraulic cylinder body, conveyor belt roller
► Electrical cabinets: switchgear, distribution box


Value-added services
⊙ Striped customization: provides burr/edge cutting (tolerance ± 0.1mm)
Performance optimization: Additional leveling machine can be added for smoothing (Ra ≤ 0.8 μ m)
Test report: Provide chemical composition analysis and mechanical property testing
Logistics support: Anti rust paper+steel strap bundling, moisture-proof packaging for sea transportation


One stop supply from raw materials to processing
We are equipped with:
-Fully continuous pickling line: annual production capacity of 500000 tons, leading the industry in surface uniformity
-Intelligent warehousing: 20000 square meters of constant temperature warehouse to avoid secondary oxidation
-Technical consultation: Provide cost reduction solutions as an alternative to cold-rolled sheets
