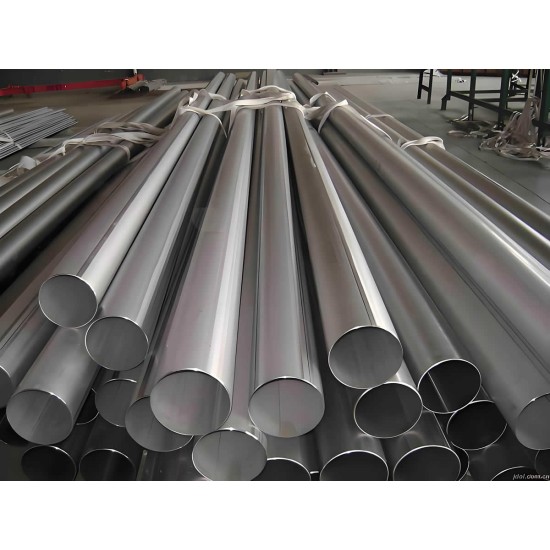

Stainless Steel Pipe

Introduction to Stainless Steel Pipe Products

product overview
Stainless Steel Pipe is a corrosion-resistant pipe material mainly composed of chromium nickel alloys (such as 304, 316L), made through hot rolling, cold rolling, or welding processes. The product has the characteristics of corrosion resistance, high strength, hygiene and environmental protection, and is widely used in the fields of petrochemicals, food and medicine, energy equipment, and building decoration.

---

Core advantages
✅ Excellent corrosion resistance
-Containing 12% -30% chromium, passed 96 hour salt spray test (ASTM B117)
-Acid alkali/chloride corrosion resistance (316L molybdenum content ≥ 2.1%)

✅ High intensity and hygiene safety
-Tensile strength ≥ 515MPa (304), in compliance with FDA food contact standards
-Internal electrolytic polishing (Ra ≤ 0.4 μ m) to prevent bacterial growth

✅ Diversified process selection
-Seamless tube: cold drawn/hot rolled, suitable for high-pressure environments
-Welded pipe: automatic argon arc welding (TIG), with no oxidation in the weld seam

✅ Environmental protection and energy saving
-100% recyclable, with a lifecycle cost lower than carbon steel pipes

---

Main classification and purpose
|Type | Material | Typical Specifications (mm) | Main Applications|
|------------------|-------------------|-------------------------|---------------------------|
|Seamless stainless steel pipe | 304/316L/310S | Φ 6- Φ 325 × 0.5-30mm | Chemical equipment pipeline, high-pressure boiler pipe|
|Welded stainless steel pipe | 201/304/316 | Φ 10- Φ 2000 × 0.8-20mm | Food and beverage conveying, building curtain wall|
|Dual phase steel pipe | 2205/2507 | Φ 15- Φ 600 × 1.0-25mm | Desalination of seawater and oil and gas extraction|
|Precision capillary | 304/316Ti | Φ 0.5- Φ 10 × 0.1-1.0mm | Medical instruments, semiconductor equipment|

---

Technical Parameter
-Execution standards: ASTM A312 (seamless/welded), ASTM A269 (precision tube)
-Temperature resistance range: -196 ℃~+800 ℃ (310S high temperature resistant type)
-Surface treatment:
-Acid pickling passivation (eliminating iron ion pollution)
-Mirror polishing (600-2000 mesh)
-Testing and Certification: Provide material reports (PMI testing) and third-party SGS certification

---

value-added services
Customized processing:
-Expansion/contraction, flange welding
-Laser cutting of complex pipe fittings (accuracy ± 0.1mm)
Special needs:
-Extra long pipe (single ≤ 18m)
-Thin walled tube (wall thickness ≤ 0.3mm, tolerance ± 0.02mm)
Technical Consultation:
-Material selection guidance (to avoid intergranular corrosion/stress cracking)
-Optimization of Fluid Resistance Calculation

---

Reliable solutions for harsh environments
We offer:
-Full industry chain control: full process traceability from steelmaking to finished products
-Quick response: Standard specifications shipped within 72 hours, special materials delivered within 15 days
-Global certification: certified by PED 2014/68/EU, ASME BPE, etc
