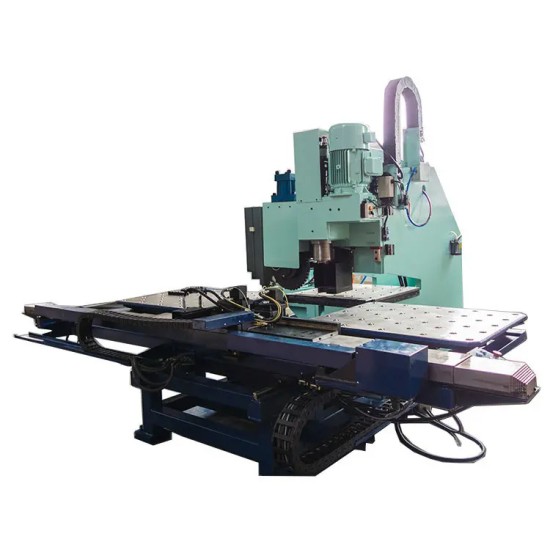

PH1610A CNC High Speed Drilling Machine of Sheet Metal

inquiry 1 Piece (MOQ)

Product Details

Inquire Now Chat with Supplier

FIN CNC Machine

iron tower manufacturing, steel structure manufacturing, wind power station manufacturing, bridge/railway manufacturing, truck manufacturing



Diamond Member Since 2024Suppliers with verified business licenses

Audited SupplierAudited by an independent third-party inspection agency

Importers and ExportersThe supplier has import and export rights

Years of Export ExperienceThe export experience of the supplier is more than 10 years

Self-brandedThe supplier has 4 Self-brands, check the Audit Report for more information

Patents AwardedThe supplier had awarded 1 patents, you can check the Audit Report for more information

Find Similar Products





Product Parameter
Product Detail
Contact This Supplier

Mainly used for steel structure, tower manufacture, and construction industry.

Its' main function is drilling holes and tapping screws on steel plates or flat bars.

High machining accuracy, work efficiency and automation, especially suitable for versatile processing production.

Details and advantages

1. CNC drilling power head adopts special spindle servo motor with strong overload capacity, and the motor drives the drilling spindle to rotate through synchronous belt.

2. The linear guide rail with high bearing roller is adopted for the moving guide of drilling power head, which has good rigidity, high static load and dynamic load capacity, ensuring the quality of material plates' hole quality and the service life time of tool.

3. The drilling clamping cylinder is used to compress and position the material plate when drilling the power head.

4. The work table is composed of Y-axis at the lower layer and X-axis of upper layer.

5. The two sets of clamps have the positioning surface of the material plate.

6. It is composed of hydraulic cylinder, locating plate, support seat, etc., and is placed on the side of x-axis sliding plate.

7. The hydraulic system is composed of oil tank, motor, oil pump, solenoid valve and hydraulic pipeline.

8. MQL micro lubrication cooling system is the most advanced in the world.

9. The control system adopts SINUMERIK 808D, the latest Siemens numerical control system, which has high reliability, convenient diagnosis and easy operation.
