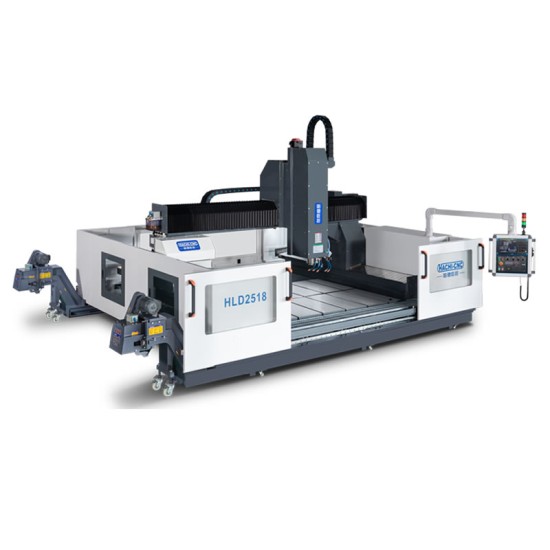

HLD HIGH-SPEED LONGMEN PROCESSING CENTER

inquiry 1 Piece (MOQ)

Product Details

Inquire Now Chat with Supplier

Guangzhou HACHI CNC Equipment co.,Ltd

high-end intelligent CNC machine tools such as high-precision CNC composite profile machining center, CNC gantry machining center, five axis linkage profile machining center, etc



Diamond Member Since 2024Suppliers with verified business licenses

Audited SupplierAudited by an independent third-party inspection agency

Importers and ExportersThe supplier has import and export rights

Years of Export ExperienceThe export experience of the supplier is more than 10 years

Self-brandedThe supplier has 4 Self-brands, check the Audit Report for more information

Patents AwardedThe supplier had awarded 1 patents, you can check the Audit Report for more information

Find Similar Products





Product Parameter
Product Detail
Contact This Supplier

Product parameters

Equipment Introduction: This equipment SETS milling, drilling, tapping as one of the automatic composite profile processing center, suitable for various lengths of copper, aluminum and nonmetal profiles, plate processing

Configuration introduction: Use 120mm diameter BT40 spindle, imported high-end CNC system, equipped with automatic chip removal machine

Application: New energy vehicle battery tray, plate processing, rail transit, etc

Feature overview: New energy vehicle parts processing special, processing parts range, high processing accuracy, fast speed, double chip removal machine design for easy chip removal

HLD 2518 Series parameter HLD 2518 Series Technical parameter table

Project		Unit	Parameter
TRAVELS	X Axis		mm	2500
	Y Axis		mm	1800
	Z Axis		mm	600
	The distance from the nose of the spindle to the end of the table		mm	150
Move	Moving speed X/Y/Z		m/min	40	40	20
	Cutting feed rate X/Y/Z		mm/min	15000	15000	15000
PRECISION	Cutting feed rate X/Y/Z		mm	0.05	0.03	0.03
	Repeat positioning accuracy X/Y/Z		mm	0.023	0.03	0.03
Spindle	Maximum speed		rpm	12000
	Spindle taper			BT40 Standard taper
	Spindle taper		mm	120
PORWER OF MOTOR	Driven motor	Power X/Y/Z	mm	3.0+3.0/3.0/3.0
	Spindle driven motor	Power	KW	7.5
