Product parameter

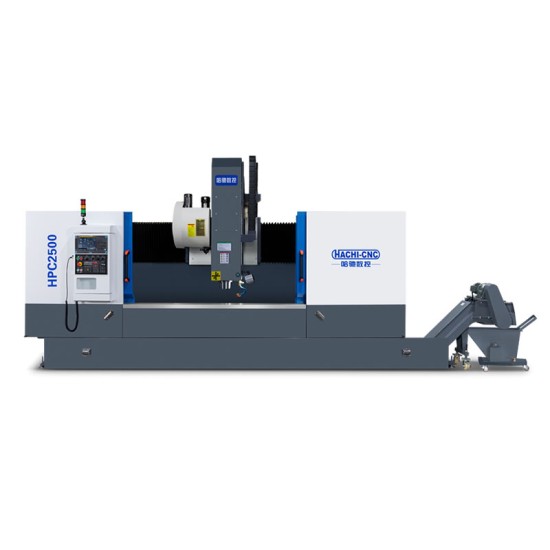

Equipment description: This equipment is a set of milling, drilling, tapping as one of the automatic composite profile processing center, suitable for processing various lengths of steel, aluminum, copper metal and non-metal profile processing
Configuration introduction: BT40 spindle taper hole with diameter of 150mm; X/Y/Z axis adopts imported high-rigidity 45# wire rail; Imported high-end control system; High power servo motor, super rigid equipment
Application fields: mechanical parts, rail transit, aerospace, military machinery, linear module guide rail, etc
Features Overview: X/Y/Z axis three-axis screw drive, high bed structure, high precision, good protection, easy chip removal
HPC Series Technical parameter table
| Project | Unit | Parameter |
| Itinerary | X-axis (spindle moves left and right) | Mm | 2500 |
| Y-axis (the spindle moves back and forth) | Mm | 600 |
| Z-axis (spindle moves up and down) | Mm | 700 |
| The closest distance from the nose end of the spindle to the end of the workbench | Mm | 150 |
| T-slot | T-slot width | Mm | 18mm |
| T-type slot number/center spacing | Mm | 2/320mm |
| Inward | Three axes | | Unknown | Y | Z |
| Fast movement speed | M/min | 36 | 28 | 28 |
| Maximum feed speed | M/min | 36 | 28 | 28 |
| Cutting feed | Mm/min | 1~15000 | 1~15000 | 1~15000 |
| Positioning accuracy (the whole process) | Mm | 0.02 | 0.01 | 0.01 |
| Repeated positioning accuracy | Mm | 0.02 | 0.02 | 0.02 |
| Three-axis drive | Three-axis servo motor | Rated power | Kilowatt | 3 | 3 | 3 |
| Maximum torque | N.m | 68 | 45 | 45 |
| Maximum output speed | Rpm | 3000 | 3000 | 3000 |
| Spindle servo motor | Spindle power | Kilowatt | 11/18.5 |
| Rated torque | N.m | 52.5 |
| Maximum torque | N.m | 118 |
| Maximum output speed | Rpm | 12000 |
| Main axis | Maximum rotational speed | Rpm | 12000 |
| Spindle diameter | Mm | 150 |
| Transmission mode | | Direct form |
| The method of drawing a knife | | BT40 four-valve claw |
| Spindle hole | | Taper 7/24 taper NO.40 |
| Spindle balance level | | G1 (ISO1940) |
| Installation method | | Vertical |
| Knife library | Knife warehouse form | | Disc type |
| Knife handle specifications | | BT40 |
| Number of knives | Hold | 24 |
| Maximum tool diameter (full knife)/length/weight | Mm, kg | Φ80mm/300mm/8kg |
| Diameter of adjacent empty knife | Mm | Φ125 |
| Knife change time (knife to knife) | Sec | 1.8 |
| Reduction ratio of knife changer reducer | | 1:08 |
| Cooling and lubrication power | Electric power | KVA | 30 (380V, 50Hz) KVA |
| Gas source | Master of Public Administration | 0.6Mpa-0.9Mpa |
| Screw lubrication | | Automatic rail oil lubrication device |
| Guide rail lubrication | | Automatic rail oil lubrication device |
| Cooling motor power | Kilowatt | 0.75 |
| Cutting and cooling | | Water-spray cutting cooling system |
| Machine tool size | Machine tool height (Z-axis positive limit) | Mm | About 3700 |
| Machine tool width (Y-axis negative limit) | Mm | About 3400 |
| Length of the whole machine + chip removal machine | Mm | About 6100 |
| Weight of the whole machine | Kilogram | About 10,000 |
| Machine tool operating environment requirements | Power supply requirements | | 3Φ380V 50HZ |
| Operating ambient temperature (average temperature not higher than 35℃ within 24 hours) | ℃ | 5～40 |
| Relative humidity of operating environment | % | 30—75 |
| * Vibration intensity | | Less than 0.5G |
| Stay away from dusty, corrosive/organic gas environments |
| Grounding resistance | Less than 10 ohms (need to be grounded separately, not grounded in series) |
