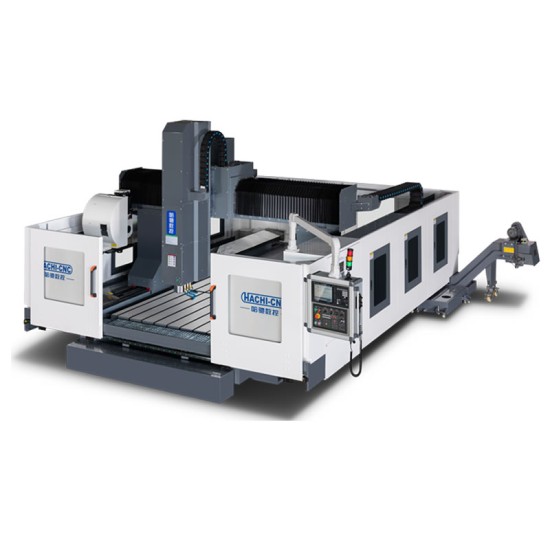

HLB LONGMEN PROCESSING CENTER（HLG SERIES）

inquiry 1 Piece (MOQ)

Product Details

Inquire Now Chat with Supplier

Guangzhou HACHI CNC Equipment co.,Ltd

high-end intelligent CNC machine tools such as high-precision CNC composite profile machining center, CNC gantry machining center, five axis linkage profile machining center, etc



Diamond Member Since 2024Suppliers with verified business licenses

Audited SupplierAudited by an independent third-party inspection agency

Importers and ExportersThe supplier has import and export rights

Years of Export ExperienceThe export experience of the supplier is more than 10 years

Self-brandedThe supplier has 4 Self-brands, check the Audit Report for more information

Patents AwardedThe supplier had awarded 1 patents, you can check the Audit Report for more information

Find Similar Products





Product Parameter
Product Detail
Contact This Supplier

Product parameters

Equipment Introduction: This equipment SETS milling, drilling, tapping as one ofthe automatic composite profile processing center, suitable for various lengths ofsteel, copper, aluminum and non-metal profile, plate processing

Configuration introduction: Use 150mm diameter BT40 spindle, imported high-end CNC system, equipped with automatic chip removal machine.

Application: Steel profile, plate processing.

HLG 3020 PARAMETER TABLE HLG 3020 Series Technical parameter table

	Project	Unit	Parameter
TOOLS	Tool changer format		Disc type
	Spindle taper		BT40
	Tool capacity	sec	16
	Tool change time	sec	1.8
	Pull studs format		45°
LUBRICATING SYSTEM	Lubricating system		Automative lubricating
LUBRICATING SYSTEM	Cooling system		Water cooling system
POWER	Electricity	KVA	30（380V、50HZ）KVA
POWER	Gas source	mpa	0.6Mpa-0.9Mpa
MECHNICAL SPECIFICATION	Operating system		MITSUBISHHI
	Overall height		About 3800
	Machine width	mm	About 4300+1300
	Overall length	mm	About 6200+800
	Area	mm³	About 6200*4300+1300
	Weight	KG	About 16000KG

Project		Unit	Parameter
TRAVELS	X Axis		mm	3000
	Y Axis		mm	2000
	Z Axis		mm	800
	The distance from the nose of the spindle to the end of the table		mm	130
Move	Moving speed X/Y/Z		m/min	40	40	20
	Cutting feed rate X/Y/Z		mm/min	15000	15000	15000
PRECISION	Cutting feed rate X/Y/Z		mm	0.05	0.03	0.03
	Repeat positioning accuracy X/Y/Z		mm	0.023	0.03	0.03
Spindle	Maximum speed		rpm	12000
	Spindle taper			BT40 Standard taper
	Spindle taper		mm	150
PORWER OF MOTOR	Driven motor	Power X/Y/Z	mm	3.0+3.0/3.0/3.0
	Spindle driven motor	Power	KW	7.5
