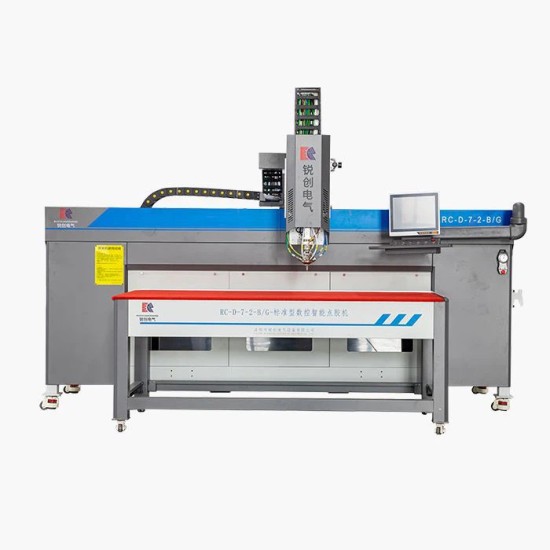

Pu Gasket Machine

1. One-piece rack structure, tidy, clean, safe, with wheels, easy

to move, no need installation
2. support CAD/Teaching/Template three functions
3. Machine working area 2300 * 1250 * 300 (mm), the largest

working range in China, can be dispensed on the largest and

highest products.
4. Germany Barmag metering pump

The PU Gasket Machine is a high-performance system designed for

the automated production of polyurethane (PU) foam gaskets.

Polyurethane, known for its exceptional durability, chemical

resistance, and elasticity, is a preferred sealing material

across a wide range of industries. This machine operates by

precisely mixing two liquid components-polyol and isocyanate-to

trigger a controlled chemical reaction. The resulting reactive

foam is then accurately dispensed onto a substrate (typically

metal or plastic), where it expands and cures into a durable,

closed-cell gasket directly on the part surface.

Key Features：

High-Precision Mixing System
Equipped with advanced metering pumps and ratio control technology to ensure consistent and accurate mixing of PU components for reliable foam quality.

Smart Control Interface
Integrated with a user-friendly PLC and touchscreen HMI for intuitive operation, programmable dispensing paths, and real-time process monitoring.

Automated Dispensing with 3-Axis Motion
Servo-driven XYZ gantry ensures smooth, continuous, and precise dispensing, even on complex or irregular surfaces.

Versatile Application Range
Suitable for sealing tasks in automotive electronics, industrial enclosures, HVAC systems, LED lighting, and many other applications requiring reliable gasketing.

Superior Sealing Performance
The in-place foamed gaskets deliver excellent rebound elasticity, long-term durability, and resistance to oil, chemicals, moisture, and temperature extremes.

Products Specification
