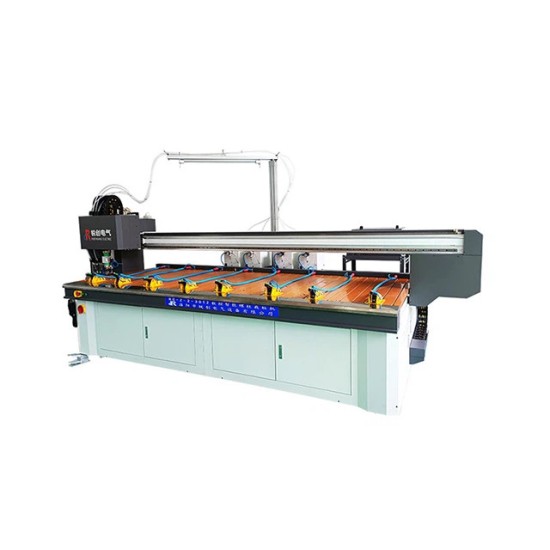

Automatic CNC Stud Welder

Automatic CNC Stud Welding Machine with Multi-head
Welding gun: 1-6
weldable studs: M3-M12
Welding area: (500-3000)*(500-1500)*300 Support customization
Application: electrical, electronics, boilers, electric power construction, decoration and home appliances, elevators, automobile industry, shipbuilding industry, aerospace industry, etc.

Product Description:

Automatic CNC Stud Welding Machine is an automatic CNC Stud Welding System with high precision and high efficiency. The production efficiency can be greatly improved, the manufacturing cost can be reduced, and the product quality can be improved.

Transmission part:

The transmission part of the automatic CNC Stud Welding Machineis equipped with high-precision belt drive and linear guide rail as standard. which ensures stable operation, high positioning accuracy and long life of the system. the control system uses the industry-level industrial computer mainboard, motion control card and AC servo drive, can be equipped with Multi-welding head

Welder:

The welder of the automatic CNC Stud Welding Machine with Multi-head is a self-developed dual-capacity automatic welding machine with communication. It has digital communication function, two sets of internal capacitors, one set of work, the other set of energy storage, double the efficiency, double the life, and charge time in seconds At the same time, it can communicate with the control system.

According to the control system, it can simultaneously control the voltage adjustment and welding of 3 (or more) automatic welding guns. Unlike other brands of welding machines, an energy storage welding machine can only be equipped with an automatic welding gun.

Control system:

The control system of the automatic CNC Stud Welding Machine adopts the latest touch test teaching integrated numerical control system, the controller is imported a new generation of special multi-axis linkage motion controller system, based on the industrial robot system development system, stable and reliable, powerful, man-machine interface for mobile for full true color handheld box, easy to operate the master in the process of field use, programming and other operations.

Instruction programming is equipped with infrared indicator, using the hand operator hand wheel to locate points, complete the input of welding nail coordinate points, convenient and quick;

CAD programming can import special software to the computer based on CAD drawings to generate work programs by means of ∪ plates copied into the system for direct production.
