Behind every high-performance light-gauge steel framing system is a sophisticated piece of industrial equipment: the light steel framing machine. These advanced manufacturing systems are revolutionizing how building components are produced, enabling unprecedented precision, efficiency, and customization in construction. From residential homes to skyscrapers, light steel framing machines are empowering manufacturers to meet the growing global demand for sustainable, resilient building solutions.

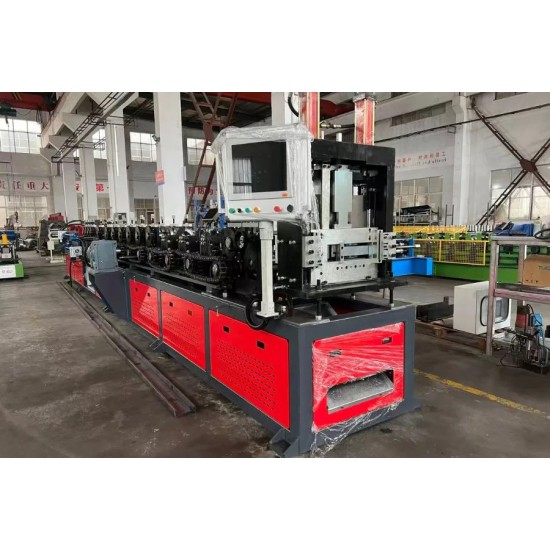

This C U Light Steel Framing Machine is for Brazilian client, the thickness is 0.8-2.0mm, sizes 70-300mm adjustable.

Technial Data:

Size	70-300mm
Thickness	0.8-2.0mm（G300-G550Galvanzied coils and Aluzinc ）
Standard Producing speed	300-700m/h
Max producing speed	1500m/h
Main motor	15kw Servo motor, 2.2KW servo motor to change width
Power supplier	400V 50Hz 3phases according to your request
Hydraulic station	7.5kw Motor
Hydraulic tank capacity	100L
Hydraulic cooling	Fan cooling with Accumulator
Hydraulic pressure	Manually set
Host cordless remote control	Standard
Frame and punching dies	Web Notch,Screw hole, chamfer, flange cut, Service Hole, suspension, cutting
Product accuracy+-	0.5mm
CNC inkjet-printer	HP inkjet printer
Size	850010001200mm
Weight	7500kg
Color	According to your request
De-colier	3 Tons electric decoiler with leveling device
