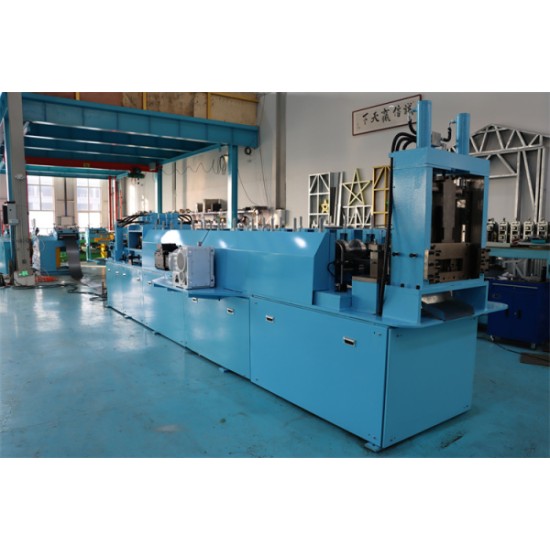

Light steel frame machine is an advanced manufacturing tool used to construct lightweight steel structures efficiently.

With the designing software and control software, the machine can automatic running and saving lots of time in drawing,material reporting, data entry, manufacturing, production record, and correcting all the errors.

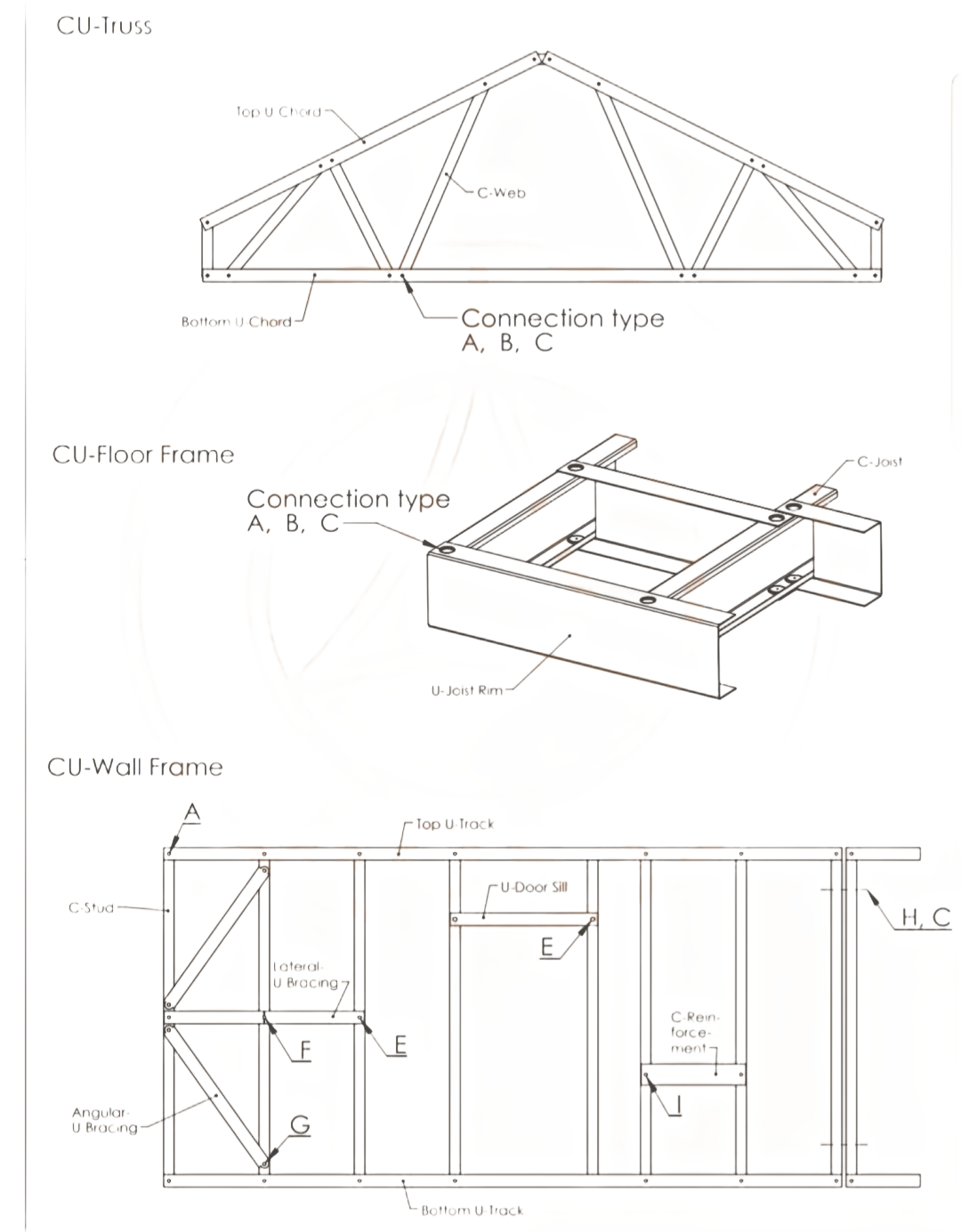

Applications: Wall system, floor system and roof system for residential, transportable units, modular house, and light commercial construction. Clear span of the roof trusses up to 15 m and can be either factory-based or transportable in a mobile factory.

Technical Data:

Size	C89
Thickness	0.8-1.6mm（Galvanzied coils and Aluzinc ）
Standard Producing speed	300-700m/h
Max producing speed	1500m/h
Main motor	7.5kw Servo motor
Power supplier	415V 50Hz 3phases according to your request
Hydraulic station	7.5kw Motor
Hydraulic tank capacity	100L
Hydraulic cooling	Fan cooling with Accumulator
Hydraulic pressure	Manually set
Host cordless remote control	Standard
Frame and punching dies	Web Notch(1 set),Screw hole(1 set), chamfer(1 set), flange cut(1 set), Service Hole(1 set), suspension, cutting blade(1 set)
Product accuracy+-	0.5mm
CNC inkjet-printer	HP inkjet printer
Size	47009501200mm
Weight	3000kg
Color	According to your request
De-colier	2 Tons electric decoiler with leveling device
