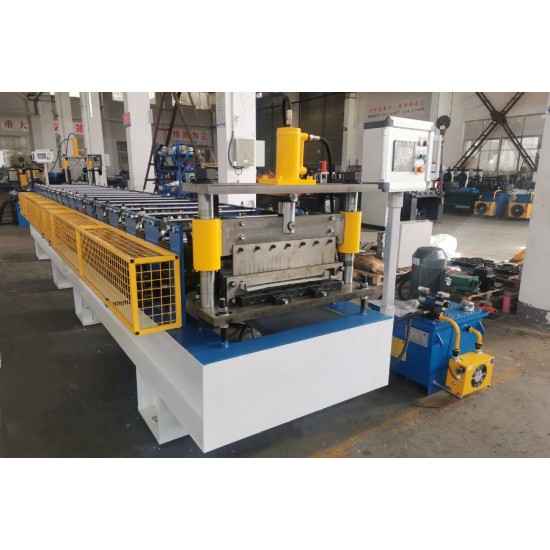

SSR type standing seam roll forming machine, which is designed to deliver high precision and efficiency for your roofing projects. Below are the key features and benefits of this machine:

Key Features:

Material Compatibility: Works with a variety of materials, including galvanized steel, aluminum, and copper.

High Precision: Ensures consistent and accurate standing seam profiles for superior roofing quality.

Efficiency: Capable of producing [X meters/min] of standing seam, significantly reducing production time.

Customization: Adjustable settings to accommodate different seam heights, widths, and profiles.

Durability: Built with high-quality components for long-lasting performance and minimal maintenance.

Technical Data:

Item NO	Description	Unit\Type	RF-RP
1	Material Thickness	mm	0.3-0.8mm, Galvanized steel
2	Forming Speed	m/min	0-12
3	Roller stands	stands	About 22 stations
4	Roller Material		45# steel, coated with chrome, fire treated, HRC 58-62
5	Shaft diameter and material		Ф70, 45# steel, fire treated, HRC 58-62
5	Main Motor Power	Kw	7.5
6	Hydraulic cutting Power	Kw	4
7	Hydraulic pressure	Mpa	12
8	Power Supply		According to client’s require
9	Tolerance	mm	1.5
10	Material of cutting		Cr12
11	Control system		PLC with touch screen
12	Main machine weight	T	6-7 Ton
13	Outer specification	m	81.01.2
14	Transmission Type		1 inch chain drive

Working Flow:

Decoiler→Guide feeding→Roll forming→Hydraulic cutting →Output table

Machine List:

5 ton passive de-coiler	1 set
Main roll forming machine	1 set
Hydraulic Cutting	1 set
PLC Control box	1 unit
Passive Output table	2 units
Spare part	1 package
Safety cover	1 unit
