Roofing system roll forming machine has a big range of metal sheet profiles. It includes trapezoidal panel, corrugated panel, roof tile panel, metal deck panel, standing seam panel, K span panel and ridge cap. Its products are widely used in roof and wall system in workshop construction and housing construction. Our metal deck roll forming machine could produce floor deck, roof deck, form deck and vigacero (more popular in Peru) according to your drawing.

The normal machinable thickness range of our steel deck roll forming machine is 0.8-1.2mm, the standard or more used in
international market is Gauge 22, 20, 18, 16 (0.75-1.5mm), working raw material is PPGI, Galvanized steel etc. We confirm machine’s configuration according to your drawing, specially the pitch and height of each wave. Sussman Machinery is always your best choice of metal deck roll forming machine.

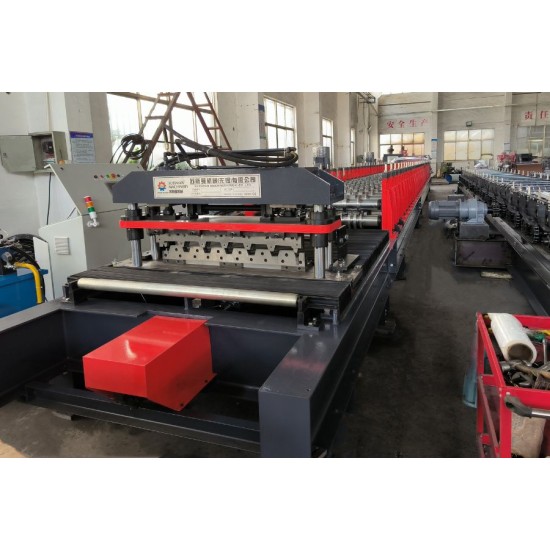

This set of High Speed B Deck Roll Forming Machine is exported to USA, the working speed can reach to 30 meters/minute with gearbox drive.

Technical Data:

Machine List:

No	Name	quantity
1	15 Tons Hydraulic Decoiler with Coil Car	1 set
2	Main Roll Forming Machine	1 set
3	Servo Following Cutting	1 set
4	Control Box	1 unit
5	Hydraulic Station	1 unit
6	6 Meters Auto Stacker	1 unit
7	Safety Cover	1 set
8	Spare Part	1 Package

Item NO	Description	Unit\Type	RF-DF
1	Steel Thickness	mm	0.6mm-1.2mm
2	Forming Speed	m/min	0-30 meters/minutes
3	Roller stands	stand	About 28 stations with one station for the embossing roller
4	Roller Material		high-grade 45# steel
5	Shaft diameter		Ф85
6	Main Motor Power	Kw	18.5KW*2
7	Hydraulic cutting Power	Kw	7.5
8	Hydraulic pressure	Mpa	12
9	Power Supply		220V, 60HZ,3 phase
10	Tolerance	mm	1.5
11	Material of cutting		Cr12mov
12	Control system		PLC with touch screen
13	Drive system		Gearbox Drive
